3D Scanning

Large Scale Metrology Solutions

Improving product quality and accelerating product development and manufacturing processes

Shape

Z+F 3D Laser Scanners &
2D Profiling Systems

Improve productivity with award-winning technology that is easy to use and
 provides outstanding resolution data in a wide range of environments.


Z+F 3D laser scanners offer a proprietary blue workflow, allowing you to significantly increase efficiency for your specific application. Their 2D profiling systems are capable of scanning with high accuracy and at high speeds. Z+F has hundreds of systems used in railway, roadway, infrastructure and industrial applications worldwide.

3D Laser Scanners

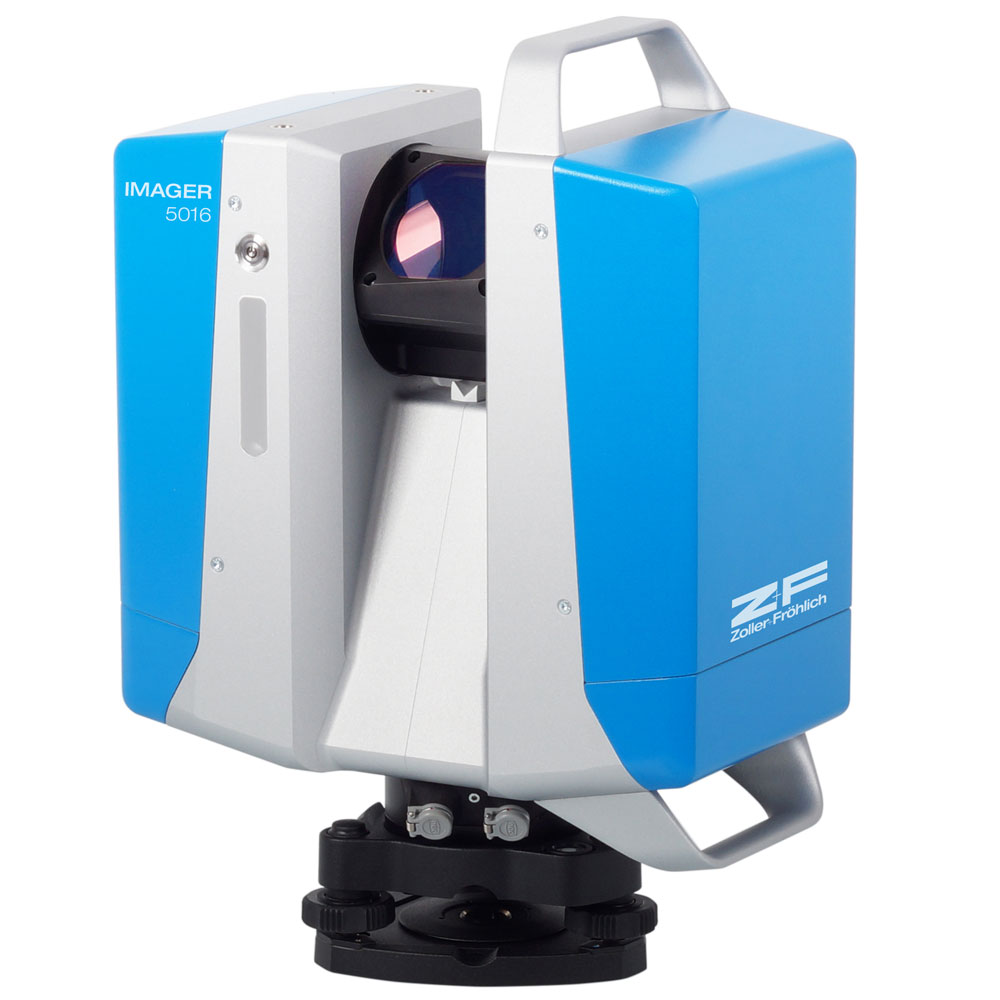

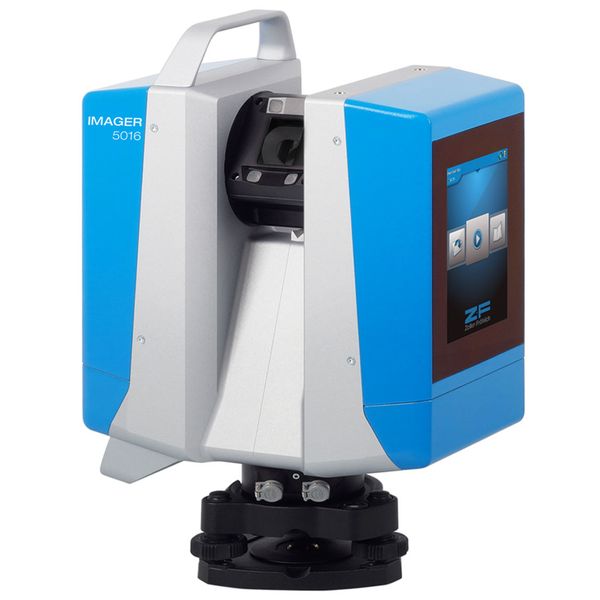

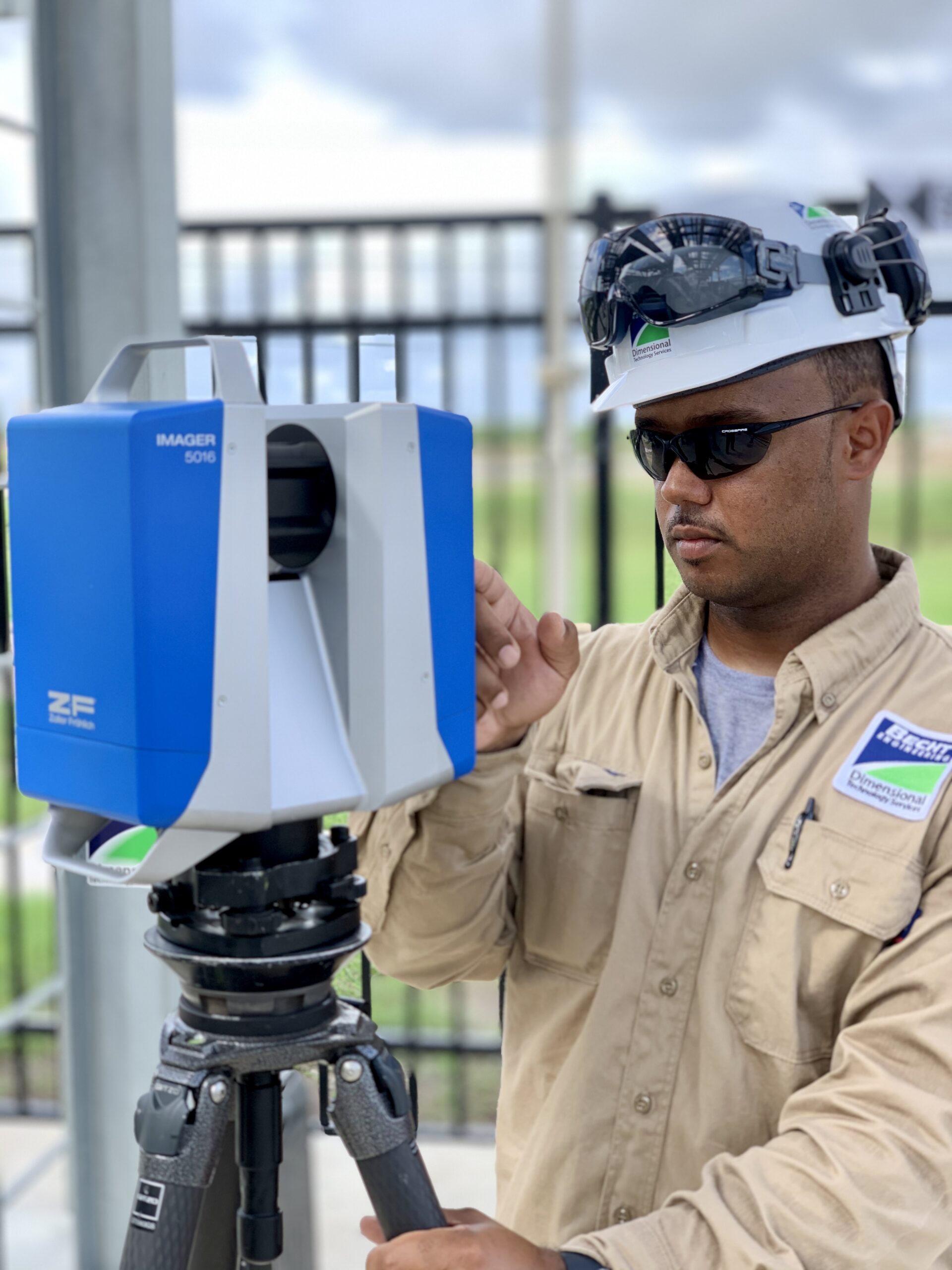

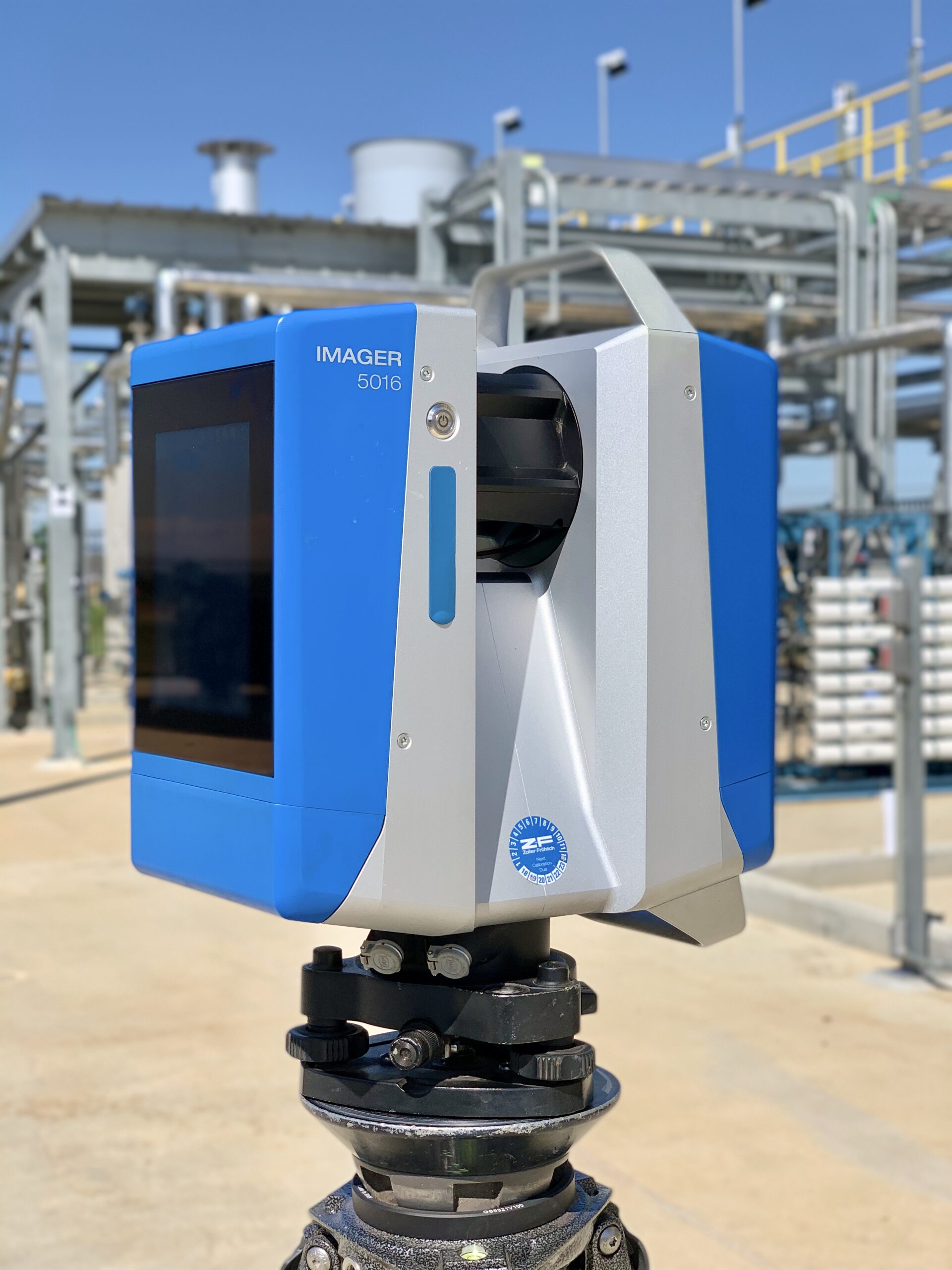

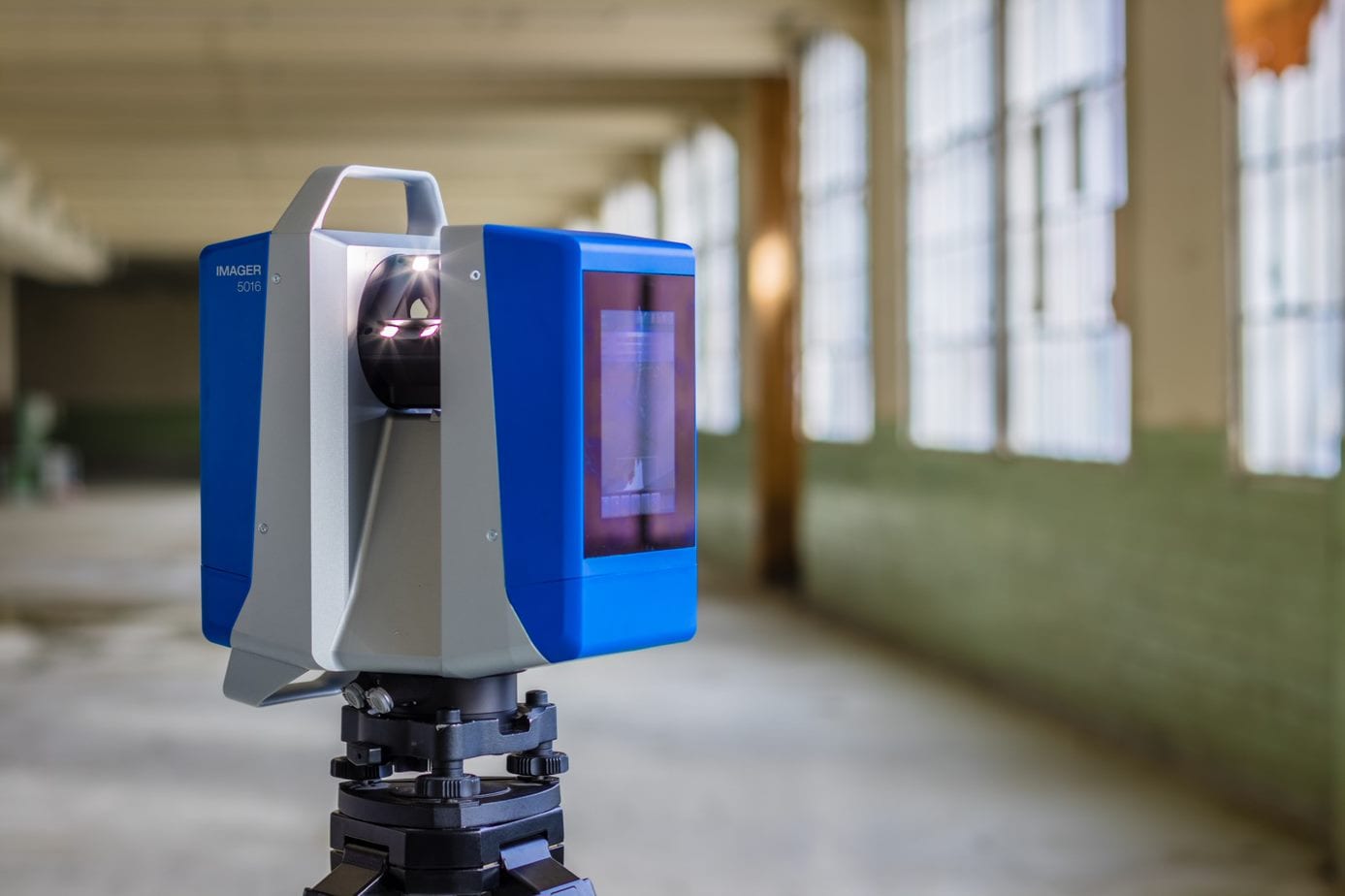

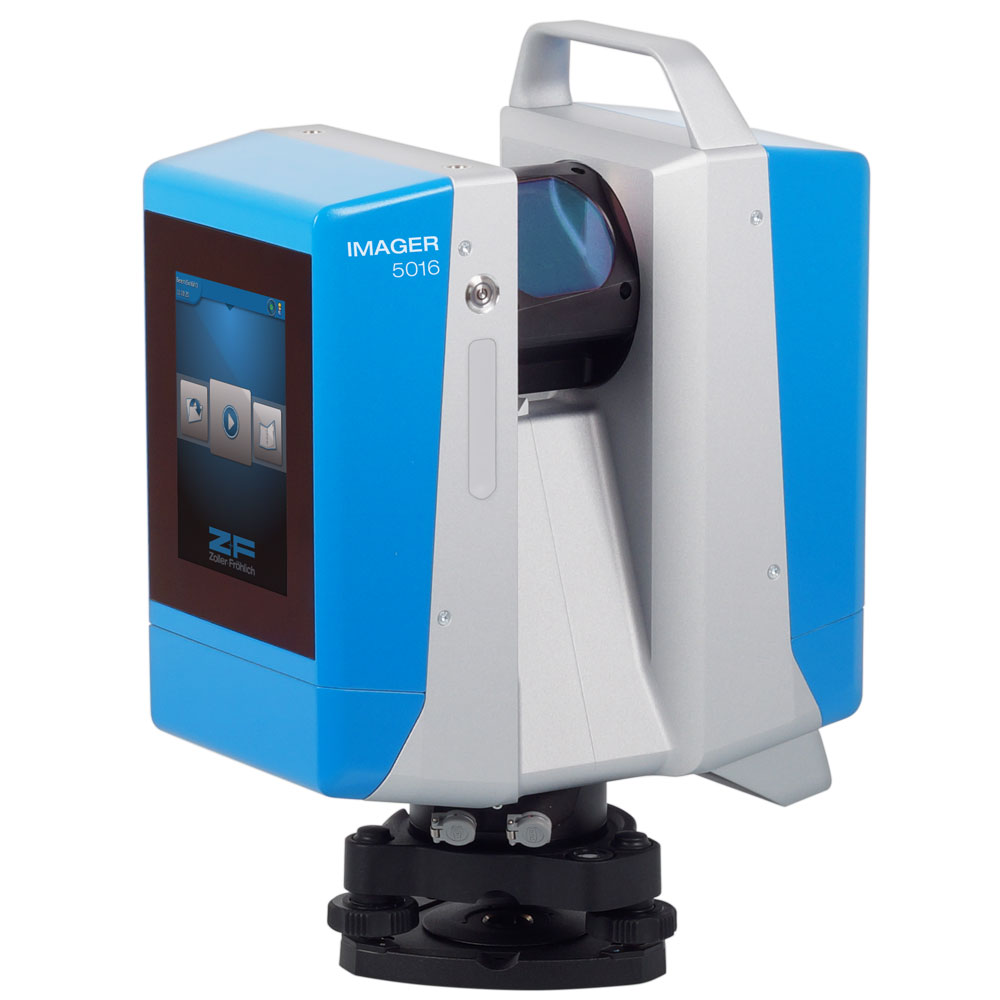

Z+F IMAGER 5016 ®

Z+F’s latest terrestrial 3D laser scanner, the Z+F IMAGER® 5016, combines compact and lightweight design with state-of-the-art laser scanning technology that allows users to take scans that are more detailed and precise.

The IMAGER 5016 is equipped with an integrated high dynamic range (HDR) camera with LED flash and also features a positioning system for real-time registration in the field.

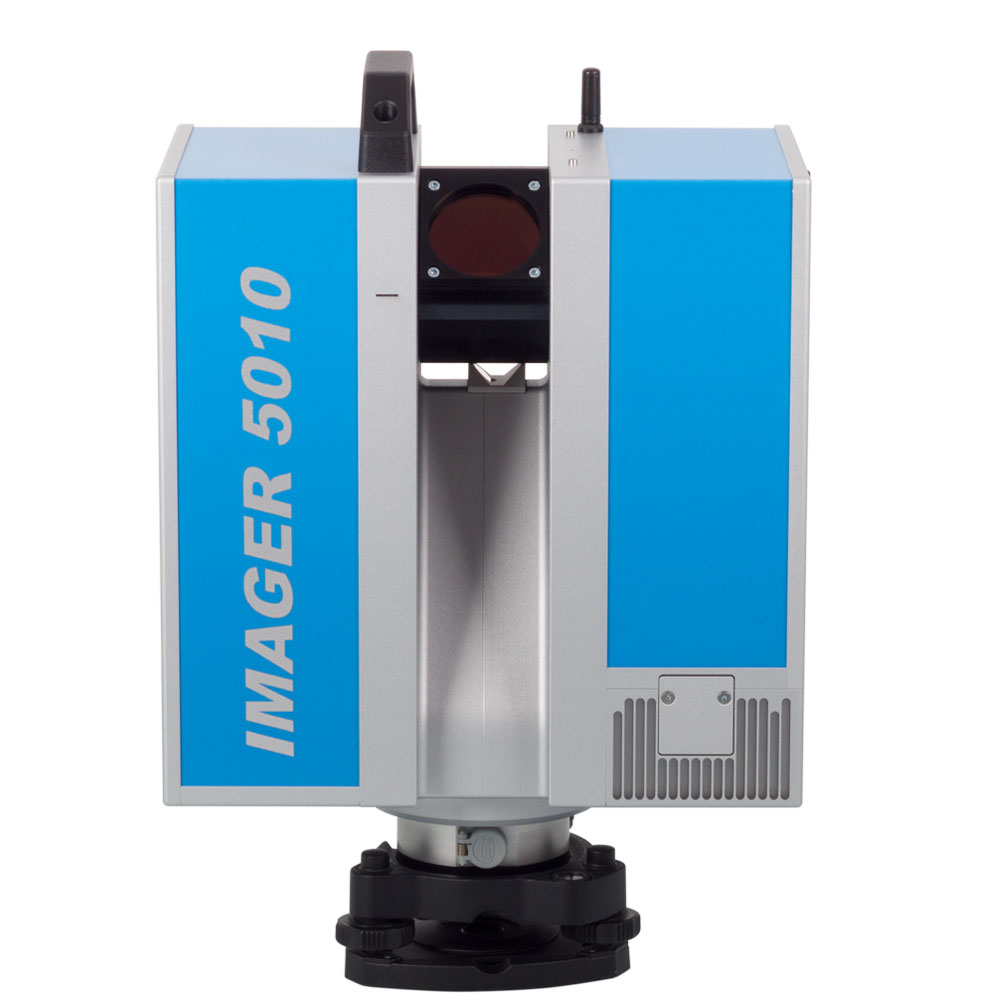

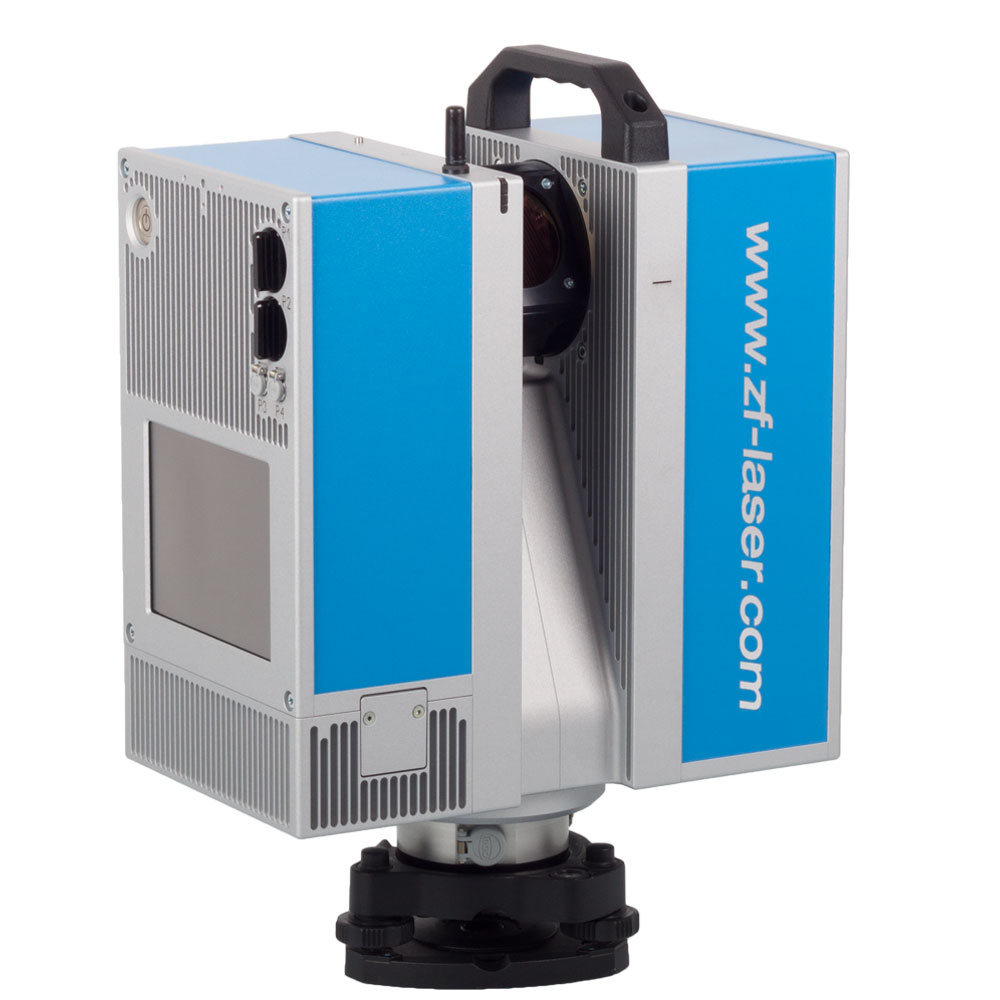

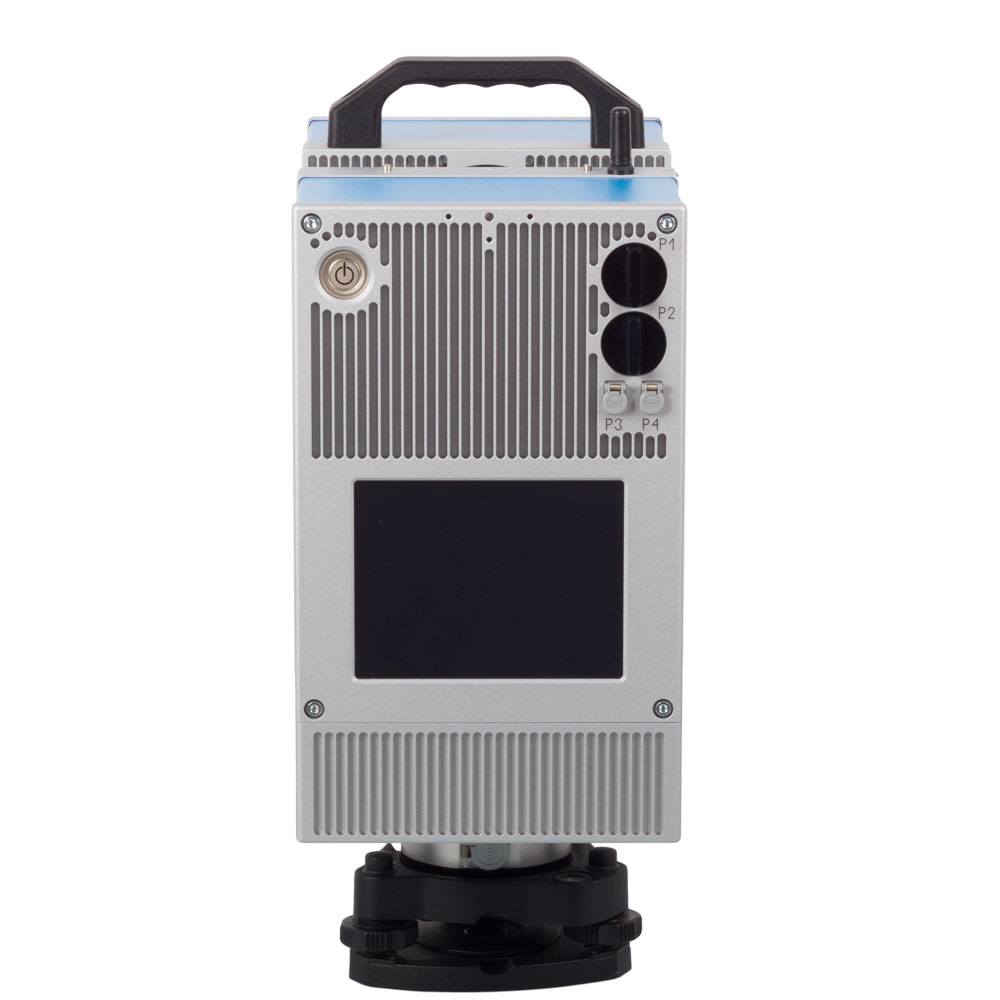

Z+F IMAGER ® 5010x

This high precision scanner is reliable and affordable. It combines accuracy, quickness, readability and flexibility in a way that makes it the ideal solution for customers who are looking for a unique combination of value and quality. As a compact, lightweight device, this scanner fits easily in a hard case that protects it from impact and shock.

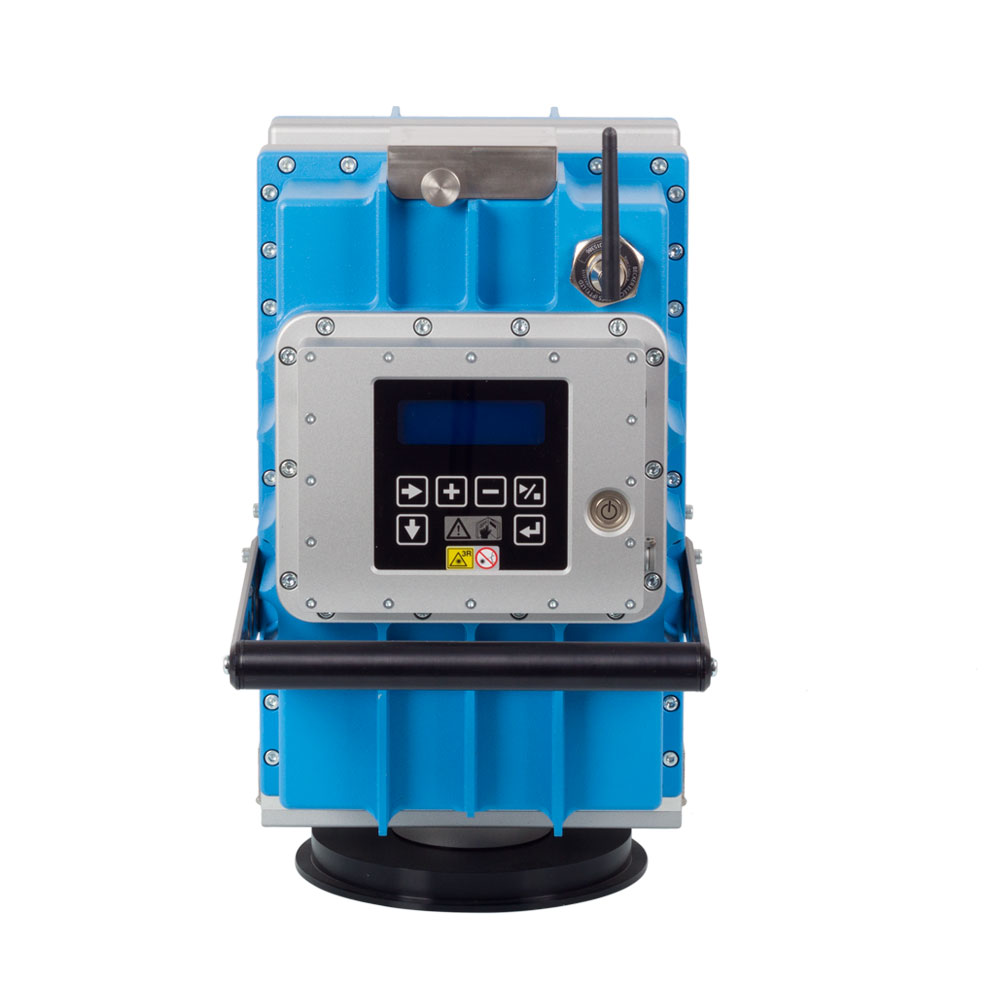

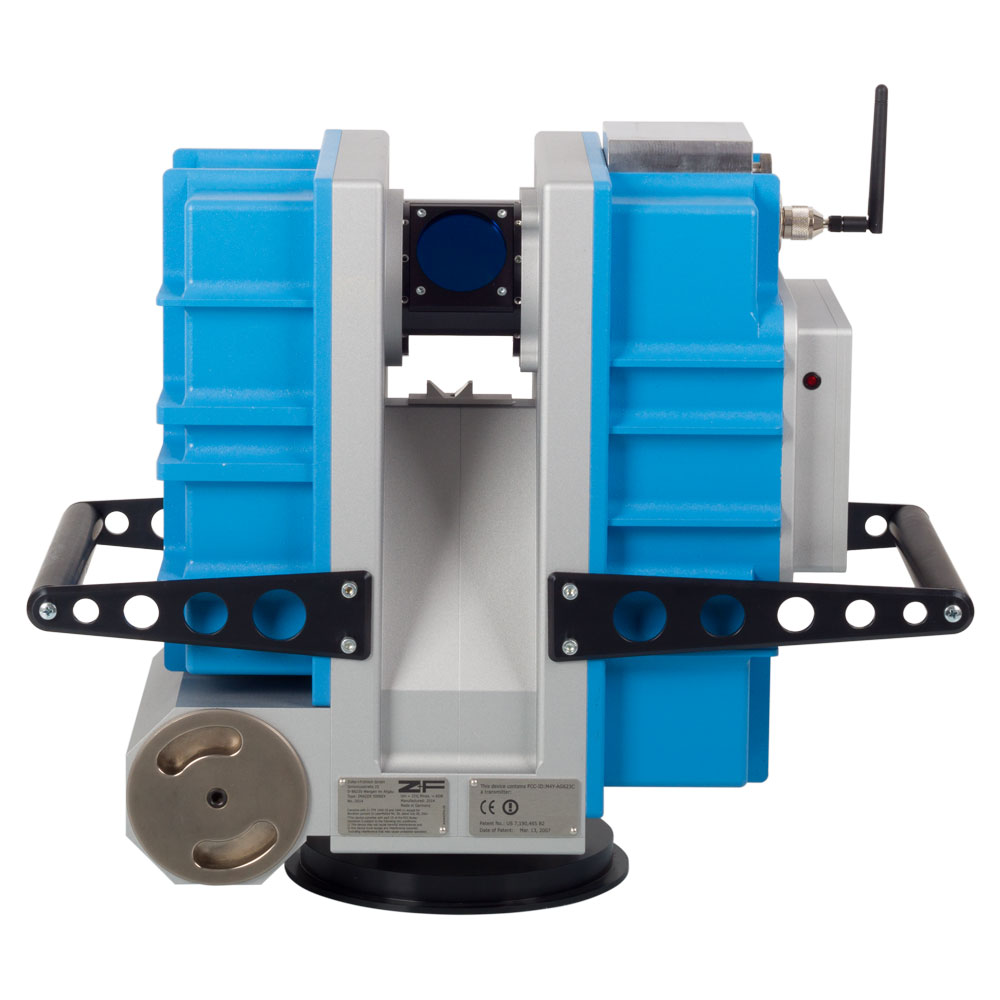

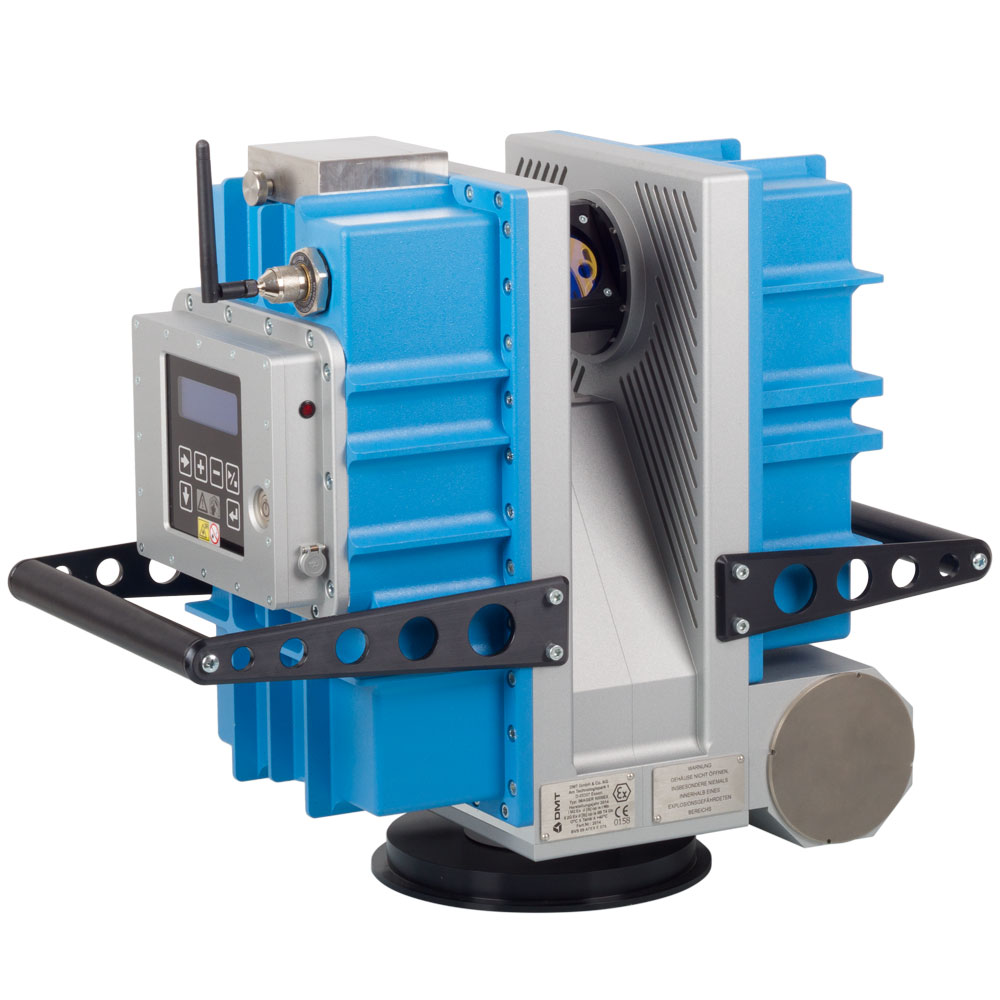

Z+F IMAGER® 5006EX

The Z+F IMAGER® 5006EX pioneers surveying in underground mining and industries where explosive atmospheres occur. The Z+F IMAGER® 5006EX is the world´s first ATEX approved 3D laser scanner for use in mining and industrial applications under explosive conditions. The Z+F IMAGER® 5006EX is class I and class II approved according to ATEX directive 94 / 9 / EG. The ATEX directive 94 /9 / EG “Equipment and protective systems intended for use in potentially explosive atmospheres” is a European standard. The ATEX approval for this equipment is widely accepted outside the European community as well.
